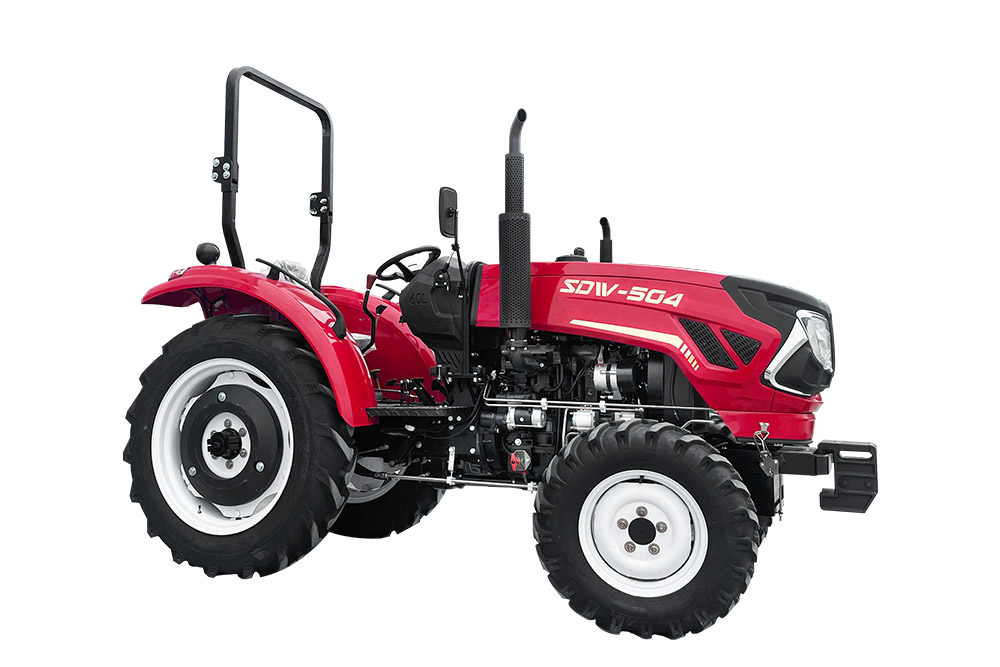

| Model | LZ-TYE504 | ||
| Type | 4×4 wheel type | ||
| Argument | L | 3.10m | |
| W | 1.50m | ||
| H | 1.97m | ||
| Wheel track | Front wheel | 0.96cm-1.20m | |
| Rear-wheel | 1.20m | ||
| Rear-wheel | 1100-1300mm | ||
| Wheelbase | 1.8m | ||
| Minimum ground datum | 300mm | ||
| Machine weight (kg) | 1500 | ||
| Engine | Model number | Weifang 490 | |
| Type | In-line, water-cooled, four-stroke, mechanical pump, electric start, optional air pump connection | ||
| Rated power (HP) | 50 horsepower | ||
| Rated speed | 2400 | ||
| Fuel oil | Diesel oil | ||
| Walking system | Front/rear tire | 6.50-16/11.2-24 | |
| Optional front and rear tires | 600-16/9.5-24（-300） | ||
| Front tyre/rear wheel (optional paddy wheel) | 6.50-16/11.2-24（1100） | ||
| Fuel system | Upper 65-liter fuel tank with fuel quantity sensor, optional lower fuel tank | ||
| Electrical system | 100 maintenance-free battery, combined meter, with safety start switch, with preheating device, | ||
| Clutch system | 10 "single action (9" double action 500) | ||
| Steering system | Hydraulic steering | ||
| Gearbox | Side gear 8+8, two-speed power output (PTO two-speed) special transmission, shuttle shift; Standard 50 half axes | ||
| Lifting system | Strong lift elevator, with floating device, double hydraulic output | ||
